EN857 SC Wire Braided Rubber Hose

Date of release：2018-03-30

Number of hits：0

Contact telephone ：138-3958-8935

Share： Reproduction More

Description: consultations; Mobile phone sweep

It is used to transport hydraulic fluids and water-based fluids.

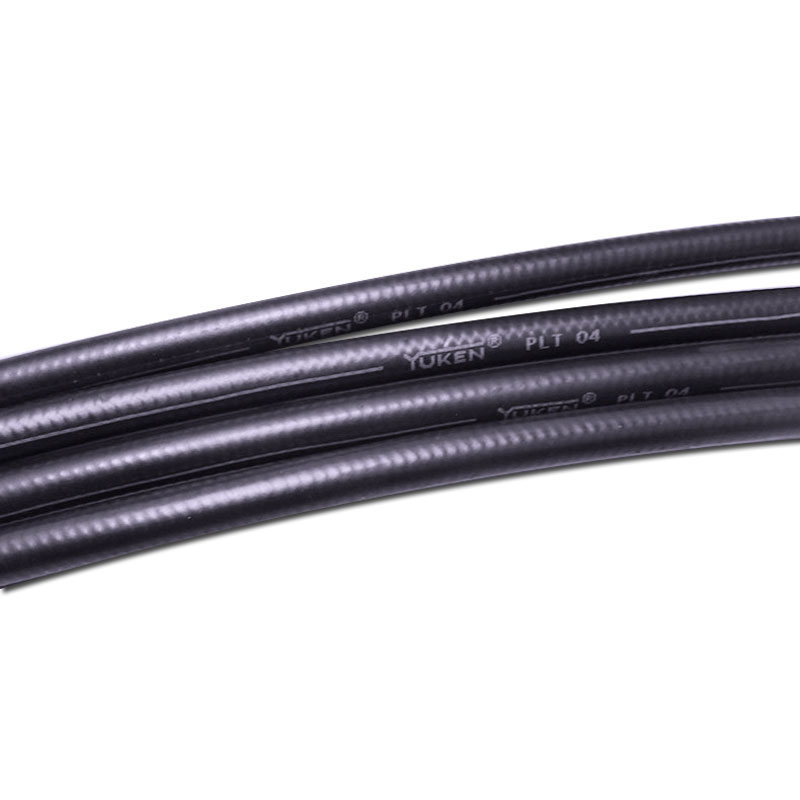

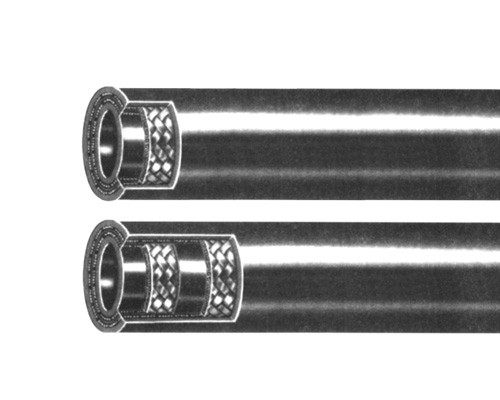

The hose is made from special rubber with excellent oil resistant and weather resistant and reinforced by coppered steel wire, presents black glazing surface or black linen finish. It complies with DIN EN857, with working temperature range from -40°C to 100°C (-40°F~+212°F).

產品型號 TPYE	公制規格	英制規格	軟管內徑 I.D		增強層外徑 W.D		軟管外徑 O.D	最大工作壓力 Max.W.P	試驗壓力 P.P	最小爆破壓力 Min.B.P	最小彎曲半徑 Min.B.R	參考重量 W.T
	公制規格	英制規格	軟管內徑 I.D		增強層外徑 W.D		軟管外徑 O.D
	SIZE	SIZE	最小	最大	最小	最大	最大
	mm	inch	Min	Max	Min	Max	Max	MPa	MPa	MPa	mm	kg/m
1SC-04	6.3	1/4	6.1	6.9	9.6	10.8	13.5	22.5	45.0	90.0	75	0.21
1SC-05	8.0	5/16	7.7	8.5	10.9	12.1	14.5	21.5	43.0	86.0	85	0.27
1SC-06	9.5	3/8	9.3	10.1	12.7	14.5	16.9	18.0	36.0	72.0	90	0.35
1SC-08	12.7	1/2	12.3	13.5	15.9	18.1	20.4	16.0	32.0	64.0	130	0.45
1SC-10	16.0	5/8	15.5	16.7	19.8	21.0	23.0	13.0	26.0	52.0	150	0.51
1SC-12	19.0	3/4	18.6	19.8	23.2	24.4	26.7	10.5	21.0	42.0	180	0.58
1SC-16	25.4	1	25.0	26.4	30.7	31.9	34.9	8.8	17.6	35.5	230	0.98
2SC-04	6.3	1/4	6.1	6.9	10.6	11.7	14.2	40.0	80	160	75	0.35
2SC-05	8.0	5/16	7.7	8.5	12.1	13.3	16.0	35.0	70	140	85	0.40
2SC-06	9.5	3/8	9.3	10.1	14.4	15.6	18.3	33.0	66	132	90	0.49
2SC-08	12.7	1/2	12.3	13.5	17.5	19.1	21.5	27.5	55	110	130	0.60
2SC-10	16.0	5/8	15.5	16.7	20.5	22.3	24.7	25.0	50	100	170	0.75
2SC-12	19.0	3/4	18.6	19.8	24.6	26.4	28.6	21.5	43	86	200	0.95
2SC-16	25.4	1	25.0	26.4	32.6	34.3	36.6	16.5	33	66	250	1.30
